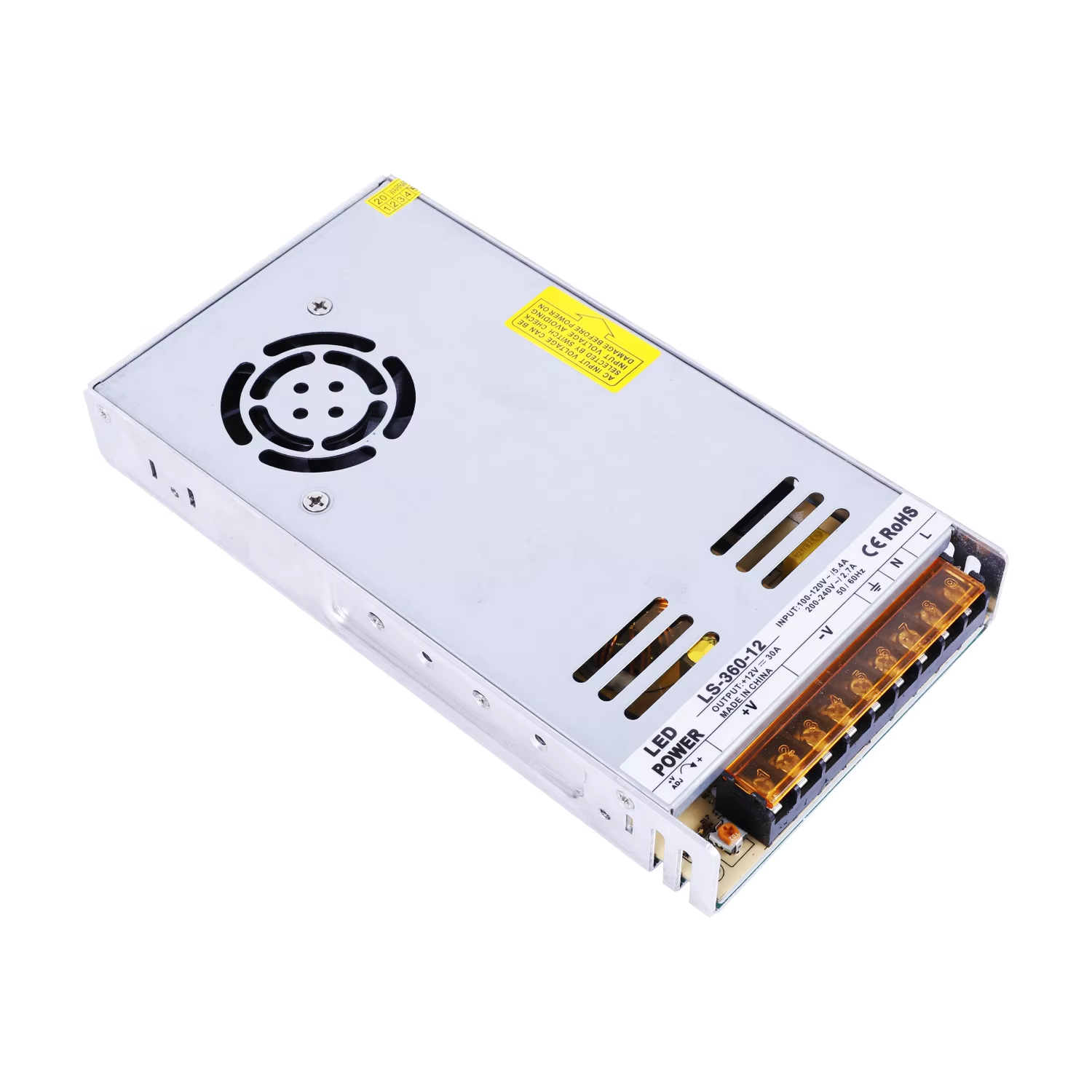

Iron Shell Switching Power Supply
The Fangxin LRS Series Adjustable Switching Power Supply is designed for versatility, reliability, and high performance. With adjustable output voltages (12V/24V/30V/60V) and a wide current range from 5A to 30A, it can be tailored to meet diverse application needs.
Built with a durable aluminum shell and compact dimensions (215 x 115 x 30 mm), this 350W power supply ensures efficient heat dissipation and long-lasting operation. Offering short circuit, over load, and over voltage protections, it guarantees safe and stable performance.
With 82% efficiency, CE & RoHS compliance, and backed by a 3-year warranty, the Fangxin LRS series is an excellent choice for industrial, commercial, and electronic applications.
Key Features:
-
Adjustable output voltage: 12V/24V/30V/60V
-
Wide current range: 5A–30A
-
High efficiency: 82%
-
Output power: 350W (customizable)
-
Protections: short circuit, over load, over voltage
-
Compact aluminum shell, lightweight (0.7 kg)
-
3-year warranty
Description
Fangxin LRS Series Adjustable Switching Power Supply 12V / 24V / 30V / 60V 5A–30A 350W
| Attribute | Parameter |
|---|---|
| Output Voltage | 12V / 24V / 30V / 60V |
| Output Current | 5A – 30A |
| Place of Origin | Guangdong, China |
| Input Voltage | 110V / 220V |
| Brand Name | Fangxin |
| Model Number | LRS-***W-***Vdc |
| Output Type | Single Phase |
| Output Frequency | 47-63Hz |
| Product Name | 12V 24V Adjustable Switching Power Supply (other voltages customizable) |
| Warranty | 3 Years |
| Protections | Short Circuit / Over Load / Over Voltage |
| Efficiency | 82% |
| Weight | 0.7 Kg |
| Dimension | 215 x 115 x 30 mm (LWH) |
| Color | Silver |
| Shell Material | Aluminum |
| Output Power | 350W (other power options available) |
| MOQ | 1 Piece |
| Selling Units | Single Item |
| Single Package Size | 27 x 16 x 8 cm |
| Single Gross Weight | 0.750 Kg |
