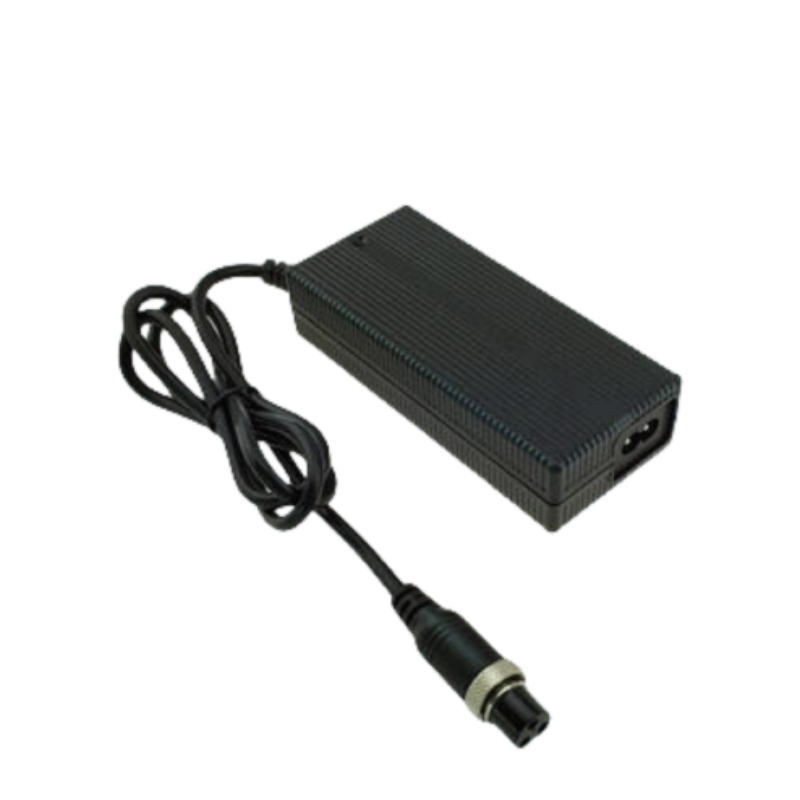

8.4V 5A Li-ion Battery Charger for 2S 7.4V Li-ion Battery
Fangxin® FX8405000 – 8.4V 5A Li-ion Battery Charger for 2S 7.4V Packs
Compact and high-efficiency charger designed for 2S 7.4V Li-ion battery applications.
- With intelligent charging (Pre-charge, CC, CV, Auto Cut-off),
- Dual-color LED indicators,
- Full safety protections including OVP, OCP, short-circuit and reverse polarity protection.
- Globally certified with CE, UL, TUV, FCC, PSE, CCC.
- Reliable quality with 3-year warranty,
- OEM and ODM services welcome.
- Suitable for LED lighting, surveillance equipment, electric tools, Toys and other portable electronics.
Description
8.4V 5A Li-ion Battery Charger Specification
Adaptor for: 2S 7.4V Li-ion Battery
Model: FX8405000
AC Input: 100~240V
DC Output: 8.4V 5A
Application: 2S 7.4V Li-ion Battery
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted,
Reversed Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 133*58*31mm
Net Weight: 400g
Industry: Security System, Lighting Industry
Brand: Fangxin®
FX0845000 8.4V 5A Li-ion Battery Charger for 2S Li-ion Batteries |
||
| 1.Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 52 W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 8.4 V | |
| Output voltage range | DC 7.4V~8.4 V | |
| Charging voltage | DC 8.4 V ±0.2 V | |
| Charging current | 5 A ±10% | |
| Pre-charge | 0.5A±0.1 A | Voltage ≤ 6V |
| Charge-end current | ≤0.5 A±10% | |
| Suit with battery type | 2S Li-ion battery | |
| Timer | – | |
| Max output power | 45 W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥85% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Weight | 400g | |
| Size | 133*58*31mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
