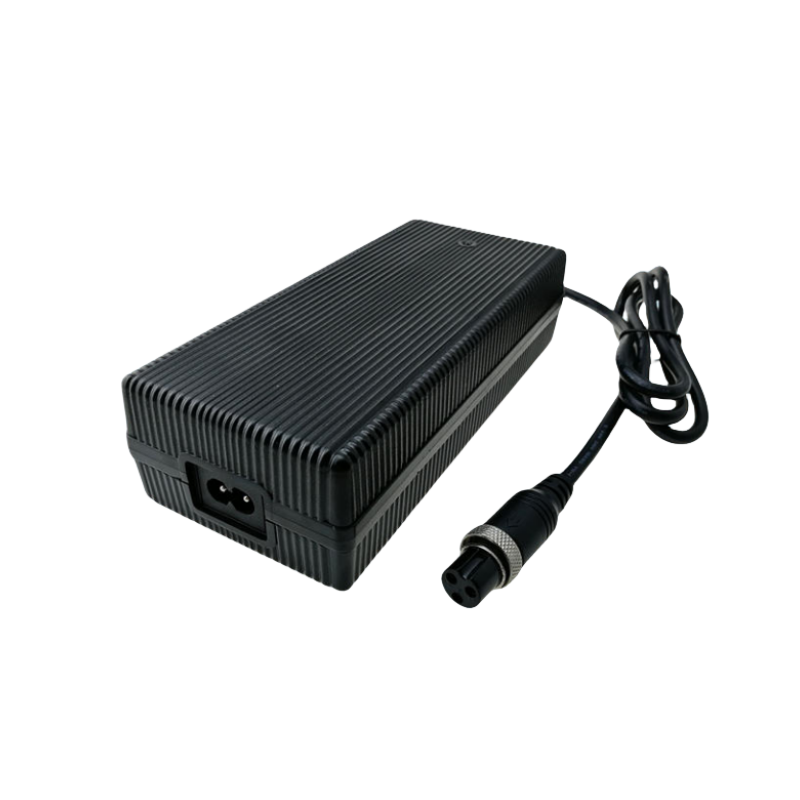

58.4V 3.5A LiFePO₄ Battery Charger for 16S 50.4V Battery Packs
Reliable 58.4V 3.5A LiFePO₄ battery charger, compatible with 16S 51.2V packs, with intelligent charging and multiple protections.
Features:
-
Intelligent charging: Pre-charge, CC, CV, Auto Cut-off
-
Dual-color LED indicators for charging status
-
Comprehensive protections: OVP, OCP, short-circuit, reverse polarity
-
Certified by CE, UL, TUV, FCC
-
Compact, durable, and efficient design
-
Ideal for e-bikes, electric vehicles, solar systems, and other 16S LiFePO₄ battery packs
-
OEM/ODM services available
Description
58.4V 3.5A LiFePO₄ Battery Charger Specification
Brand: Fangxin®
Model: FX5843500LFP
AC Input: 100~58.4V
DC Output: 58.4V 3.5A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 178*80*46mm
Net Weight: 800g
Adaptor for: 16S 50.4V LiFePO₄ Battery
Customized Charger: Acceptable
FX5843500LFP 58.4V 3.5A LiFePO₄ Battery Charger for 16S 50.4V Battery Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 100~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 232W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC50.4V~ 58.4V | |
| Charging current | 3.5A ±10% | |
| Charging voltage | DC 58.4V±0.2 V | |
| Pre-charge | 0.35A ± 10% | Voltage≤32V
(battery discharge voltage) |
| Charge-end current | ≤0.7A±10% | |
| Suit with battery type | 16S 50.4V LiFePO₄ Battery | |
| Timer | – | |
| Max output power | 204W | |
| Ripple voltage | ≤580mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +50% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +55% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 800g | |
| Size | 178*80*46mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
