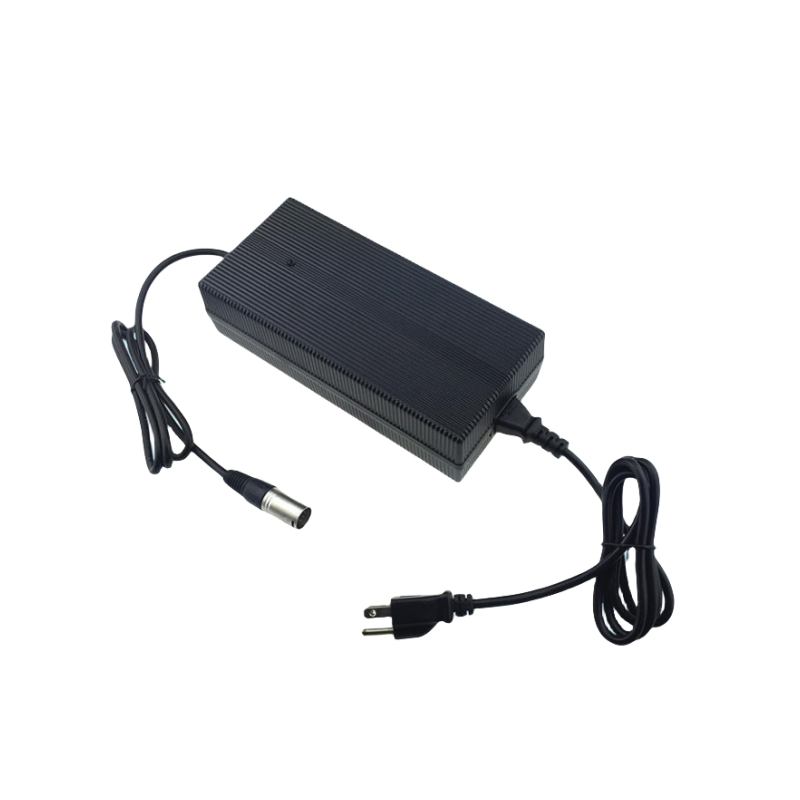

47.5V 8A LiFePO₄ Battery Charger for 13S 41.6V Packs

Description

47.5V 8A LiFePO₄ Battery Charger Specification

­

Brand: FANGXIN^®

Model: FX4388000LFP

AC Input: 100~47.5V

DC Output: 47.5V 8A

Charge Process: Pre-charge, CC, CV and Automatically Cut-off

Charger Indicator: With Double color LED for power capacity show

Output Protections: OVP, OCP, Shorted, Reversed

Safety Approval: CE, UL, TUV, FCC, PSE, CCC

Size: 233*108*64mm

Net Weight: 1900g

Adaptor for: 13S 41V LiFePO4 Battery

Customized Charger: Acceptable



FX4388000LFP 47.5V 8A LiFePO₄ Battery Charger for 13S 41.6V Packs
Item	Specification	Remark
1.Input
Rating input voltage	100~240 Vac, 50/60 Hz
Input voltage range	100~264 Vac
Rating input current	1.0 A/RMS	Input:100V   Output: Full load
Max input power	427W	Input:100V   Output: Full load
2.Output
No load output voltage
Output voltage range	DC41V~ 47.5V
Charging current	8A ±10%
Charging voltage	DC 47.5V±0.2 V
Pre-charge	0.8A ± 10%	Voltage≤26V (battery discharge voltage)
Charge-end current	≤1.6A±10%
Suit with battery type	13S 41V LiFePO4 Battery
Timer	–
Max output power	380W
Ripple voltage	≤475mV	Full load
Power LED	Red	Power on
Charging LED	All off	No battery
	All on (or Green on)	Finished
	All flashing	Error
	Flashing one by one	Charging
Shorted	Yes
Reversed	Yes
Efficiency	≥89%	Full load @220V
3.Environment
Operate temperature	-10 ~ +40℃
Operate humidity	< +50%	Relative humidity
Storage temperature	-40 ~ +70℃
Storage humidity	0 ~ +55%	Relative humidity
Cooling	Natural
Vibration resistance	5MM / 50HZ/600S	Non-operating condition
Impact resistance	1 meter drop test 3 times	Non-operating condition
4.Mechanical
Net Weight	1900g
Size	233*108*64mm	Casing only
Connector	Refer to order
5.Safety
Max. temperature rise	< 40℃ on casing
Safety approval	CE/TUV/FCC/PSE/CCC
MTBF	30000 H
ESD	8.0 KV
Hi-Pot Insulation	i/p to o/p: 3000V (1 min)
