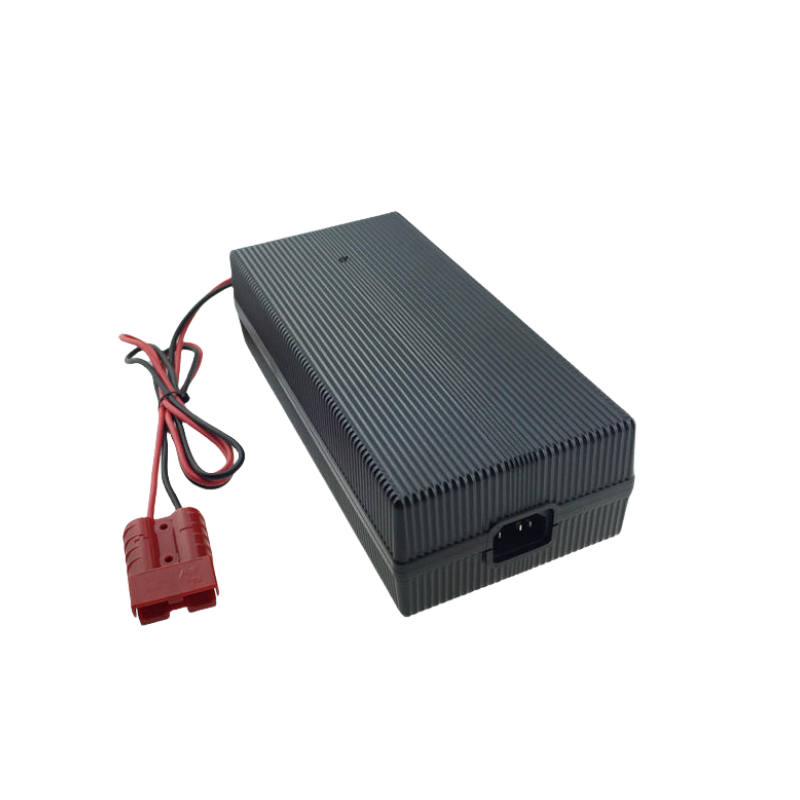

43.8V 6A LiFePO₄ Battery Charger for 36V (37.8V nominal) 12S Packs
Features
-
Input: 100~240V AC
-
Output: 43.8V 6A DC
-
Compatible with 12S LiFePO₄ (36V / 37.8V nominal) battery packs
-
Intelligent CC/CV charging, Auto Cut-off
-
LED indicator for charging status
-
Protections: OVP, OCP, Short Circuit, Reverse Polarity
-
Compact and lightweight design
-
Adapt for LED lighting, security systems, handheld tools, RC toys, electric vehicles, and other portable or battery-powered devices
-
Fully automated production line, consistent quality, low price
-
3-year warranty
-
OEM/ODM service available
Description
43.8V 6A LiFePO4 Battery Charger Specification
Brand: Fangxin®
Model: FX4386000LFP
AC Input: 100~243.8V
DC Output: 43.8V 6A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 233*108*64mm
Net Weight: 1900g
Adaptor for: 12S 37.8V LiFePO4 Battery
Customized Charger: Acceptable
FX4386000LFP 43.8V 6A LiFePO₄ Battery Charger for 36V (37.8V nominal) 12S Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 100~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 295W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC37.8V~ 43.8V | |
| Charging current | 6A ±10% | |
| Charging voltage | DC 43.8V±0.2 V | |
| Pre-charge | 0.6A ± 10% | Voltage≤24V
(battery discharge voltage) |
| Charge-end current | ≤1.2A±10% | |
| Suit with battery type | 12S 37.8V LiFePO4 Battery | |
| Timer | – | |
| Max output power | 262.8W | |
| Ripple voltage | ≤430mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +50% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +55% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 1900g | |
| Size | 233*108*64mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
