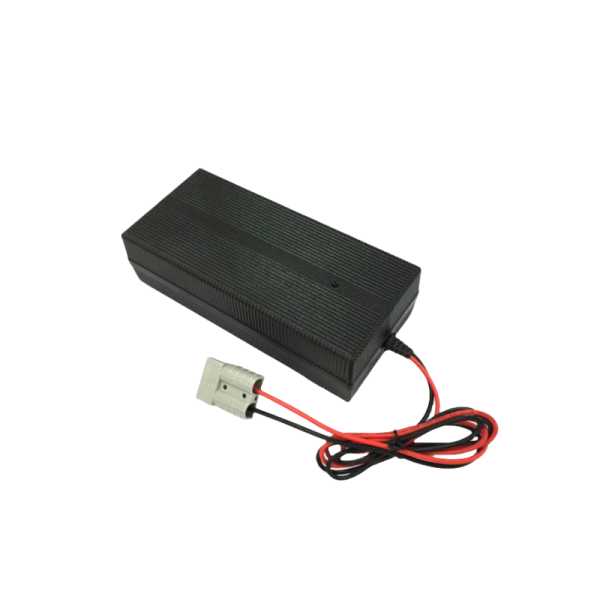

36V 10A LiFePO₄ Battery Charger for 10S 32V LFP Packs
High-power 36V 10A LiFePO4 battery charger designed for 10S 32V LFP packs. Perfect for e-bikes, scooters, and other LiFePO4 battery powered devices.
Features
-
Intelligent charging Pre-charge Constant Current CC Constant Voltage CV Auto Cut-off
-
Dual-color LED indicators for charging status
-
Comprehensive protections Over-voltage Over-current Short-circuit Reverse polarity
-
Certified CE UL TUV FCC PSE CCC
-
Output 36V DC 10A
-
Input 100-240V AC
-
Compatible with 10S 32V LiFePO4 battery packs
-
Reliable performance with 3-year warranty
-
OEM ODM services available
Description
36V 10A LiFePO₄ Battery Charger Specification
Brand: Fangxin®
Model: FX36010000LFP
AC Input: 100~240V
DC Output: 36V 10A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 233*108*64mm
Net Weight: 1900g
Adaptor for: 10S 31.5V LiFePO₄ Battery
Customized Charger: Acceptable
FX36010000LFP 36V 10A LiFePO₄ Battery Charger for 10S 32V LFP Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 100~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 404W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | ||
| Output voltage range | DC31.5V~ 36V | |
| Charging current | 10A ±10% | |
| Charging voltage | DC 36V±0.2 V | |
| Pre-charge | 1A ± 10% | Voltage≤20V
(battery discharge voltage) |
| Charge-end current | ≤2A±10% | |
| Suit with battery type | 10S 31.5V LiFePO₄ Battery | |
| Timer | – | |
| Max output power | 360W | |
| Ripple voltage | ≤360mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +50% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +55% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 1900g | |
| Size | 233*108*64mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
