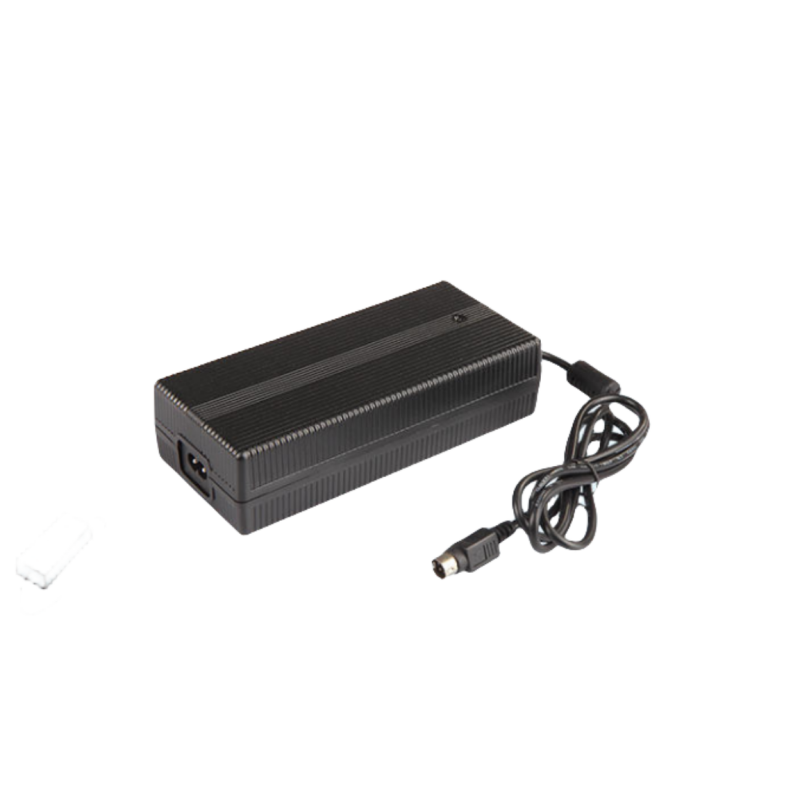

21V 7A Li-ion Battery Charger for 5S 18.5V Packs
✅ Features:
-
Intelligent charging: Pre-charge, Constant Current (CC), Constant Voltage (CV), Auto Cut-off
-
Output: 21V 7A, suitable for 5S (18.5V nominal) lithium battery packs
-
Dual-color LED indicators for charging status
-
Safety protections: OVP, OCP, SCP, Reverse Polarity
-
Global certifications: CE, UL, FCC, PSE, RoHS
-
Compact and efficient design
-
OEM & ODM services available
-
3-year warranty
✅ 应用领域（Application）：
-
Cordless power tools
-
LED lighting systems
-
RC hobby (airplane, car, boat)
-
Portable electronics
-
Electric scooter batteries
-
DIY energy storage systems
Description
21V 7A Li-ion Battery Charger Specification
Brand: Fangxin®
Model: FX2107000
AC Input: 100 ~240V
DC Output: 21V 7A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 178*80*46MM
Net Weight: 850g
Adaptor for: 5S 18.50V Li-ion Battery, Lipo battery, Lithium ion battery
Customized Charger: Acceptable
|
FX2107000 21V 7A Li-ion Battery Charger for 5S 18.5V Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 167W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 21 V | |
| Output voltage range | DC 18.50V ~ 21V | |
| Charging current | 7A ±10% | |
| Charging voltage | DC 21V ±0.2 V | |
| Pre-charge | 0.7A ± 0.1A | Voltage≤15V |
| Charge-end current | ≤1.4A±10% | |
| Suit with battery type | 5S Li-ion Battery | |
| Timer | – | |
| Max output power | 147W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥85% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 850g | |
| Size | 178*80*46MM | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
