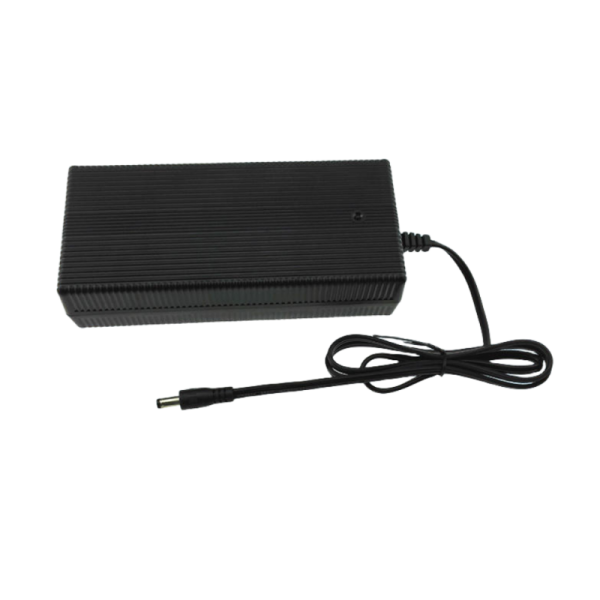

16.8V 7A Fast Li-ion Battery Charger for 4S 14.8V Packs

Description

16.8V 7A Li-ion Battery Charger Specification



Brand: Fangxin®

Model: FX1687000

AC Input: 100 ~240V

DC Output: 16.8V 7A

Charge Process: Pre-charge, CC, CV and Automatically Cut-off

Charger Indicator: With Double color LED for power capacity show

Output Protections: OVP, OCP, Shorted, Reversed

Safety Approval: CE, UL, TUV, FCC, PSE, CCC

Size: 154*60*36MM

Net Weight: 450g

Adaptor for: 4S 14.8V Li-ion Battery, Lipo battery, Lithium ion battery

Customized Charger: Acceptable



FX1687000 16.8V 7A Fast Li-ion Battery Charger for 4S 14.8V Packs
Item	Specification	Remark
1.Input
Rating input voltage	100~240 Vac  50/60 Hz
Input voltage range	90~264 Vac
Rating input current	1.0 A/RMS	Input:100V   Output: Full load
Max input power	133W	Input:100V   Output: Full load
2.Output
No load output voltage	DC 16.8 V
Output voltage range	DC14.8V ~ 16.8V
Charging current	7A ±10%
Charging voltage	DC 16.8 V ±0.2 V
Pre-charge	0.7A ± 0.1A	Voltage≤12V
Charge-end current	≤1.4A±10%
Suit with battery type	4S Li-ion Battery
Timer	–
Max output power	118 W
Ripple voltage	≤168mV	Full load
Power LED	Red	Power on
Charging LED	All off	No battery
	All on (or Green on)	Finished
	All flashing	Error
	Flashing one by one	Charging
Shorted	Yes
Reversed	Yes
Efficiency	≥89%	Full load @220V
3.Environment
Operate temperature	-10 ~ +40℃
Operate humidity	< +90%	Relative humidity
Storage temperature	-40 ~ +70℃
Storage humidity	0 ~ +95%	Relative humidity
Cooling	Natural
Vibration resistance	5MM / 50HZ/600S	Non-operating condition
Impact resistance	1 meter drop test 3 times	Non-operating condition
4.Mechanical
Weight	800g
Size	178*80*46MM	Casing only
Connector	Refer to order
5.Safety
Max. temperature rise	< 40℃ on casing
Safety approval	CE/TUV/FCC/PSE/CCC
MTBF	30000 H
ESD	8.0 KV
Hi-Pot Insulation	i/p to o/p: 3000V (1 min)
