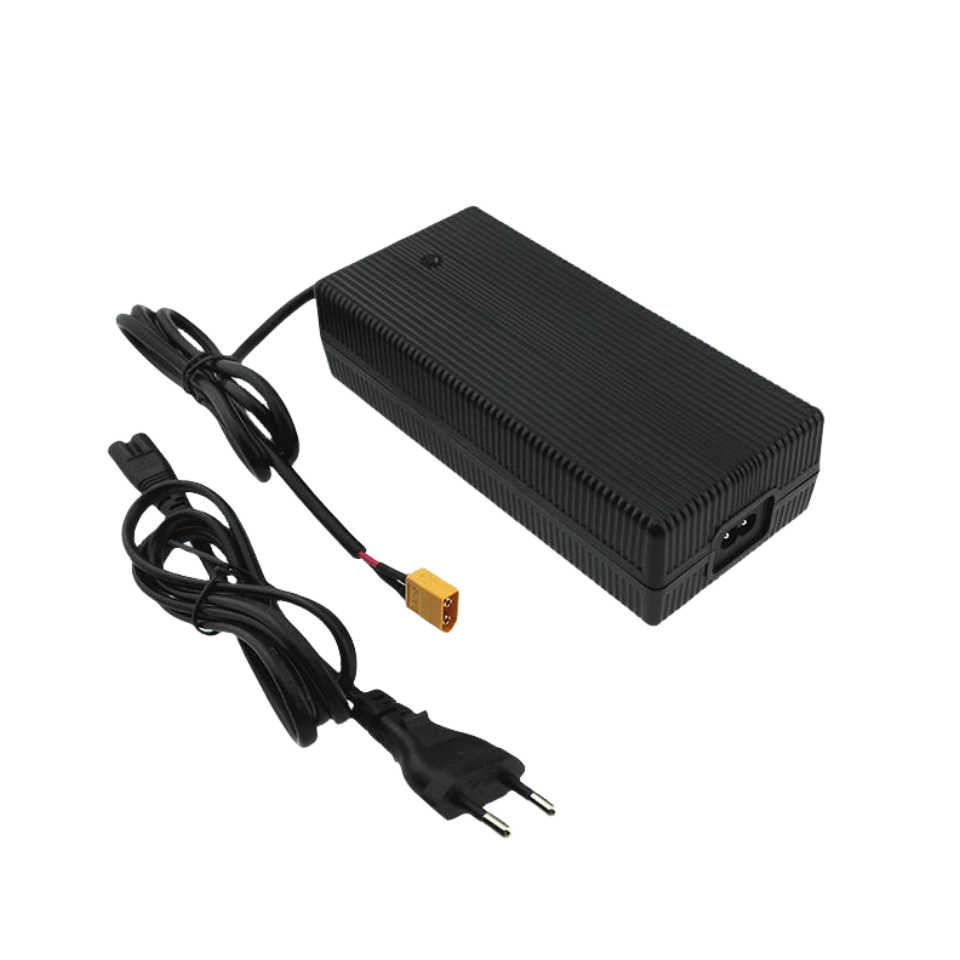

14.6V 9A LiFePO₄ Battery Charger for 4S 12.8V LFP Packs
High-performance 14.6V 9A LiFePO₄ charger for 4S 12.8V LFP batteries. Provides safe, fast, and efficient charging with intelligent control, multiple protections, and global certifications.
Features
-
Specially designed for 4S 12.8V LiFePO₄ (LFP) battery packs
-
Intelligent 3-stage charging: Constant Current (CC), Constant Voltage (CV), Float
-
Dual-color LED indicators for charging status and full charge notification
-
Built-in protections: over-voltage, over-current, short-circuit, reverse polarity
-
High efficiency with optimized heat dissipation for stable performance
-
CE, UL, FCC, RoHS certified for worldwide compliance
-
Backed by 3-year warranty for guaranteed quality
-
OEM/ODM customization supported for current, voltage, and connector options
-
Widely used in solar energy storage, e-bikes, UPS, emergency lighting, and portable power equipment
Description
14.6V 9A LiFePO₄ Battery Charger Specification
Brand: Fangxin®
Model: FX1469000LFP
AC Input: 100~240V
DC Output: 14.6V 9A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 178*80*46mm
Net Weight: 820g
Adaptor for: 4S 12.8V LiFePO₄ Battery
Customized Charger: Acceptable
FX1469000LFP 14.6V 9A LiFePO₄Battery Charger for 4S 12.8V LFP Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 147W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 14.6V | |
| Output voltage range | DC12.8V ~ 14.6V | |
| Charging current | 9A ±10% | |
| Charging voltage | DC 14.6V±0.2 V | |
| Pre-charge | 0.9A ± 0.9A | Voltage≤8V
(battery discharge voltage) |
| Charge-end current | ≤1.8A±10% | |
| Suit with battery type | 4S 12.8V LiFePO₄ Battery | |
| Timer | – | |
| Max output power | 131.4W | |
| Ripple voltage | ≤140mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 820g | |
| Size | 178*80*46mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
