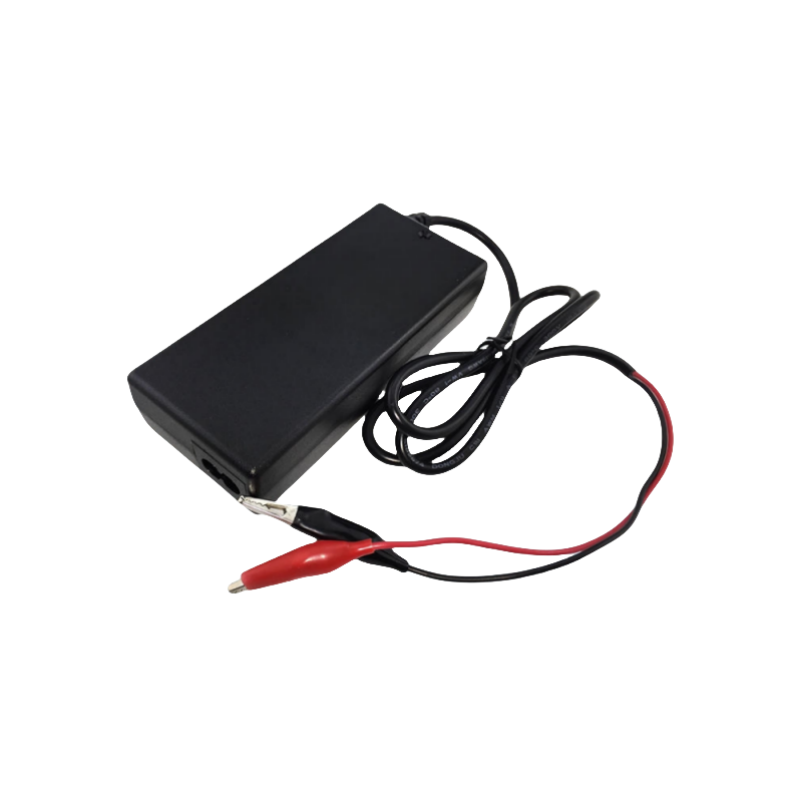

14.4V 5A Lead-acid Battery Charger for 12V SLA/AGM/GEL Battery Packs
FX1445000 14.4V 5A Lead-Acid Battery Charger – Suitable for 12V SLA, AGM, GEL, and VRLA Batteries. The Top Reliable charging with intelligent 4-stage process (Pre-charge, CC, CV, Cut-off), dual-color LED indicator, and 100% full protection of over heating/over temperature/over current/over voltage and short circuit(OVP, OCP, short, reverse). CE, UL, FCC certified.
Description
14.4V 5A Lead-acid Battery Charger For 1S 12V SLA/AGM/GEL Battery Specification
Brand: Fangxin®
Model: FX1445000
AC Input: 100~240V
DC Output: 14.4V 5A
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted, Reversed
Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 133*58*31mm
Net Weight: 350g
Adaptor for: 1S 12V Lead Acid Battery Battery, SLA battery, Sealed Lead Acid battery, and Pb-acid/AGM/GEL/VRLA/WET battery
Customized Charger: Acceptable
|
FX1445000 14.4V 5A Lead-acid Battery Charger for 12V SLA/AGM/GEL Battery Packs |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac, 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 84.8W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 14.6V | |
| Output voltage range | DC12V ~ 14.6V | |
| Charging current | 5A ±10% | |
| Charging voltage | DC 14.6V ±0.2 V | |
| Pre-charge | 0.5A ± 0.4A | Voltage≤10.8V |
| Charge-end current | ≤1A±10% | |
| Suit with battery type | 1S 12V Lead-acid Battery | |
| Timer | – | |
| Max output power | 73W | |
| Ripple voltage | ≤150mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on (or Green on) | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥86% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Net Weight | 350g | |
| Size | 133*58*31mm | Casing only |
| Connector | Refer to order | |
| Ordinary | DC jack with 2.5*5.5*10mm | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
