Description

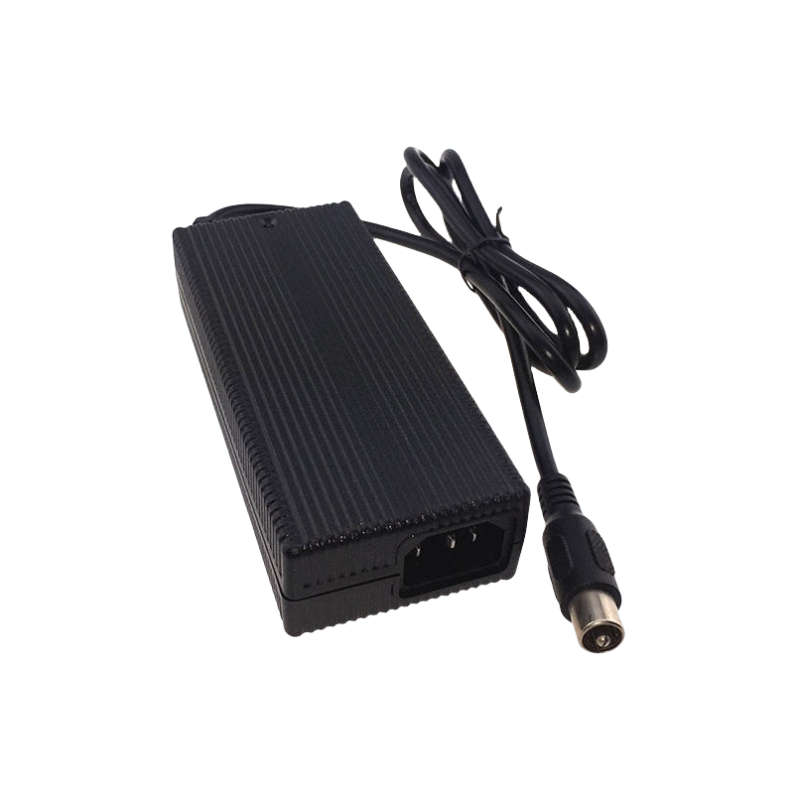

 12.6V 6A Li-ion Battery Charger Specification

Brand: FANGXIN®

Model: FX1266000

Adaptor for: 3S 11.10V Li-ion Battery

AC Input: 100~240V

DC Output: 12.6V 6A

Application: 3S 11.10V Li-ion Battery

Charge Process:  Pre-charge, CC, CV and Automatically Cut-off

Charger Indicator: With Double color LED for power capacity show

Output Protections: OVP, OCP, Shorted,

Reversed Safety Approval: CE, UL, TUV, FCC, PSE, CCC

Size: 133*58*30mm

Net Weight: 350g

Industry: Storage battery, Lipo Battery, Lithium ion Battery, Li-ion Battery

Customized Service: Acceptable



FX1266000 12.6V 6A Charger for 3S 11.10V Li-ion Battery
Item	Specification	Remark
1.Input
Rating input voltage	100~240 Vac  50/60 Hz
Input voltage range	90~264 Vac
Rating input current	1.0 A/RMS	Input:100V Output: Full load
Max input power	92W	Input:100V Output: Full load
2.Output
No load output voltage	DC 12.6 V
Output voltage range	DC 11.10V~ 12.60V
Suit with battery type	3S  Li-ion  battery
Charging current	6 A ±10%
Charging voltage	DC 12.6 V ±0.2 V
Pre-charge	0.6A ± 0.1A	Voltage ≤ 9V
Charge-end current	≤1.2 A±10%
Timer	–
Max output power	76W
Ripple voltage	≤168mV	Full load
Power LED	Red	Power on
Charging LED	All off	No battery
	All on	Finished
	All flashing	Error
	Flashing one by one	Charging
Shorted	Yes
Reversed	Yes
Efficiency	≥86%	Full load @220V
3.Environment
Operate temperature	-10 ~ +40℃
Operate humidity	< +90%	Relative humidity
Storage temperature	-40 ~ +70℃
Storage humidity	0 ~ +95%	Relative humidity
Cooling	Natural
Vibration resistance	5MM / 50HZ/600S	Non-operating condition
Impact resistance	1 meter drop test 3 times	Non-operating condition
4.Mechanical
Weight	350g
Size	133*58*31mm	Casing only
Connector	Refer to order
5.Safety
Max. temperature rise	< 40℃ on casing
Safety approval	CE/TUV/FCC/PSE/CCC
MTBF	30000 H
ESD	8.0 KV
Hi-Pot Insulation	i/p to o/p: 3000V (1 min)
