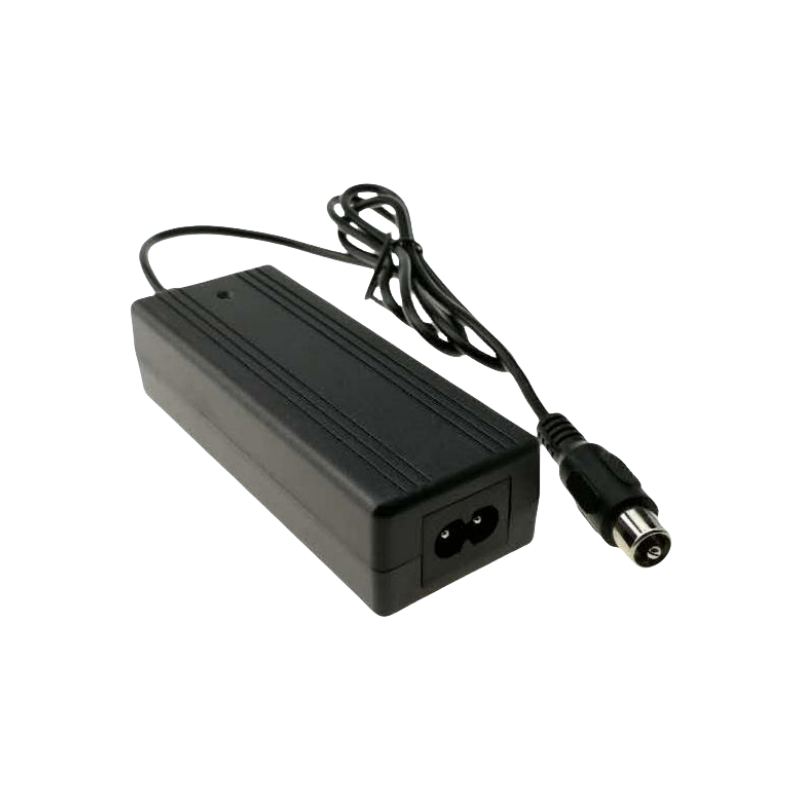

12.6V 3A Charger for 3S 11.1V Li-ion Battery Packs
Fangxin 12.6V 3A Li-ion Battery Charger for 3S 11.1V Packs
Compact and efficient charger designed for 3S 11.1V Li-ion battery applications.
Features：
-
intelligent charging (Pre-charge, CC, CV, Auto Cut-off)
-
Dual-color LED indicators
-
Comprehensive protections: OVP, OCP, short-circuit, and reverse polarity protection
-
Certified by CE, UL, TUV, FCC, PSE, CCC
-
Reliable performance with 3-year warranty
-
OEM/ODM services available
-
Ideal for LED lighting, security systems, handheld tools, RC toys, and other portable devices
Description
12.6V 3A Li-ion Battery Charger Specification
Brand: FANGXIN®
Model: FX1263000
AC Input: 100~240V
DC Output: 12.6V 3A
Application: 3S 11.10V Li-ion Battery
Charge Process: Pre-charge, CC, CV and Automatically Cut-off
Charger Indicator: With Double color LED for power capacity show
Output Protections: OVP, OCP, Shorted,
Reversed Safety Approval: CE, UL, TUV, FCC, PSE, CCC
Size: 113*44*30mm
Net Weight: 300g
Adaptor for: 3S 11.10V Li-ion Battery
Customized Charger: Acceptable
FX1263000 12.6V 3A Charger adapts for 3S 11.10V Li-ion Battery |
||
| Item | Specification | Remark |
| 1.Input | ||
| Rating input voltage | 100~240 Vac 50/60 Hz | |
| Input voltage range | 90~264 Vac | |
| Rating input current | 1.0 A/RMS | Input:100V Output: Full load |
| Max input power | 45 W | Input:100V Output: Full load |
| 2.Output | ||
| No load output voltage | DC 12.6 V | |
| Output voltage range | DC 11.10V~ 12.60V | |
| Suit with battery type | 3S Li-ion battery | |
| Charging current | 3 A ±10% | |
| Charging voltage | DC 12.6 V ±0.2 V | |
| Pre-charge | 0.3A ± 0.1A | Voltage ≤ 9V |
| Charge-end current | ≤0.45 A±10% | |
| Timer | – | |
| Max output power | 37.8 W | |
| Ripple voltage | ≤168mV | Full load |
| Power LED | Red | Power on |
| Charging LED | All off | No battery |
| All on | Finished | |
| All flashing | Error | |
| Flashing one by one | Charging | |
| Shorted | Yes | |
| Reversed | Yes | |
| Efficiency | ≥89% | Full load @220V |
| 3.Environment | ||
| Operate temperature | -10 ~ +40℃ | |
| Operate humidity | < +90% | Relative humidity |
| Storage temperature | -40 ~ +70℃ | |
| Storage humidity | 0 ~ +95% | Relative humidity |
| Cooling | Natural | |
| Vibration resistance | 5MM / 50HZ/600S | Non-operating condition |
| Impact resistance | 1 meter drop test 3 times | Non-operating condition |
| 4.Mechanical | ||
| Weight | 300g | |
| Size | 113*44*30mm | Casing only |
| Connector | Refer to order | |
| 5.Safety | ||
| Max. temperature rise | < 40℃ on casing | |
| Safety approval | CE/TUV/FCC/PSE/CCC | |
| MTBF | 30000 H | |
| ESD | 8.0 KV | |
| Hi-Pot Insulation | i/p to o/p: 3000V (1 min) | |
