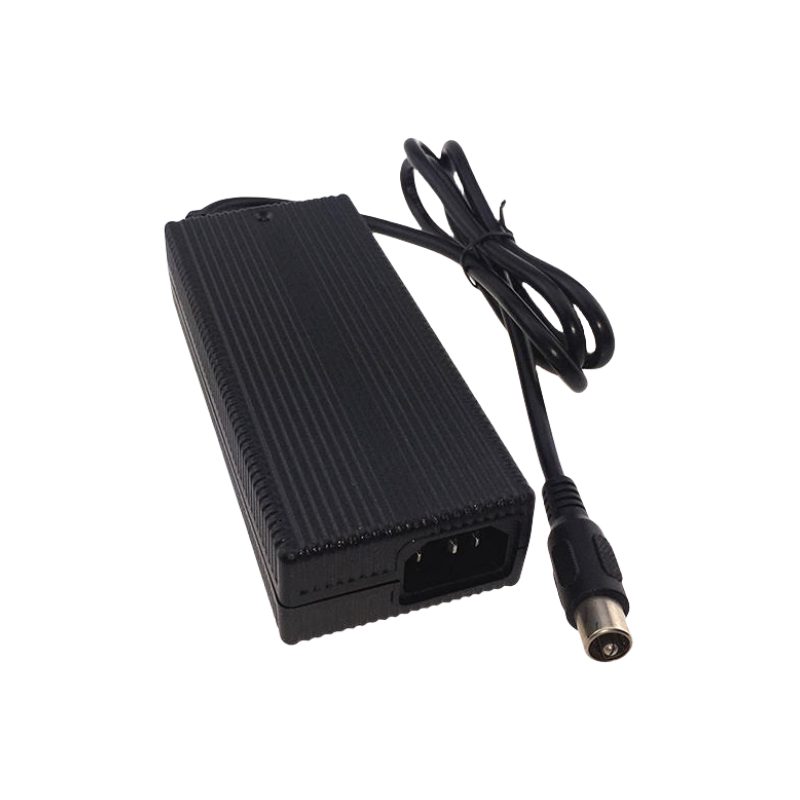

11V 5A LiFePO₄ Battery Charger for 3S 9.6V LFP Packs

Durable 11V 5A LiFePO₄ battery charger designed for 3S 9.6V LFP packs. Features intelligent charging, multiple protections, and long service life.

Specially designed for 3S 9.6V LiFePO₄ (LFP) battery packs
Intelligent 3-stage charging: Constant Current (CC), Constant Voltage (CV), and Float
LED indicators showing charging and full-charge status
Multiple safety protections: Over-voltage (OVP), Over-current (OCP), Short-circuit (SCP), Reverse polarity
High efficiency and excellent heat dissipation for stable performance
Certified to CE, UL, FCC, RoHS global safety standards
3-year warranty for guaranteed quality
OEM/ODM customization available for voltage, current, and connectors
Suitable for e-bikes, scooters, UPS systems, solar storage, emergency lighting, and portable power supplies

Description

Brand: Fangxin^®

Model: FX1105000

AC Input: 100~240V

DC Output: 11V 5A

Charge Process: Pre-charge, CC, CV and Automatically Cut-off

Charger Indicator: With Double color LED for power capacity show

Output Protections: OVP, OCP, Shorted, Reversed

Safety Approval: CE, UL, TUV, FCC, PSE, CCC

Size: 113*58*31mm

Net Weight: 350g

Adaptor for: 3S 9.6V LiFePO4 Battery

Customized Charger: Acceptable

FX1105000 11V 5A LiFePO₄ Battery Charger for 3S 9.6V LFP Packs
Item	Specification	Remark
1.Input
Rating input voltage	100~240 Vac, 50/60 Hz
Input voltage range	90~264 Vac
Rating input current	1.0 A/RMS	Input:100V Output: Full load
Max input power	63W	Input:100V Output: Full load
2.Output
No load output voltage	DC 11V
Output voltage range	DC9.6V ~ 11.1V
Charging current	5A ±10%
Charging voltage	DC 11.1V±0.2 V
Pre-charge	0.5A ± 0.5A	Voltage≤6V (battery discharge voltage)
Charge-end current	≤1A±10%
Suit with battery type	3S 9.6V LiFePO4 Battery
Timer	–
Max output power	55.5W
Ripple voltage	≤110mV	Full load
Power LED	Red	Power on
Charging LED	All off	No battery
	All on (or Green on)	Finished
	All flashing	Error
	Flashing one by one	Charging
Shorted	Yes
Reversed	Yes
Efficiency	≥89%	Full load @220V
3.Environment
Operate temperature	-10 ~ +40℃
Operate humidity	< +90%	Relative humidity
Storage temperature	-40 ~ +70℃
Storage humidity	0 ~ +95%	Relative humidity
Cooling	Natural
Vibration resistance	5MM / 50HZ/600S	Non-operating condition
Impact resistance	1 meter drop test 3 times	Non-operating condition
4.Mechanical
Net Weight	350g
Size	1135831mm	Casing only
Connector	Refer to order

5.Safety
Max. temperature rise	< 40℃ on casing
Safety approval	CE/TUV/FCC/PSE/CCC
MTBF	30000 H
ESD	8.0 KV
Hi-Pot Insulation	i/p to o/p: 3000V (1 min)
